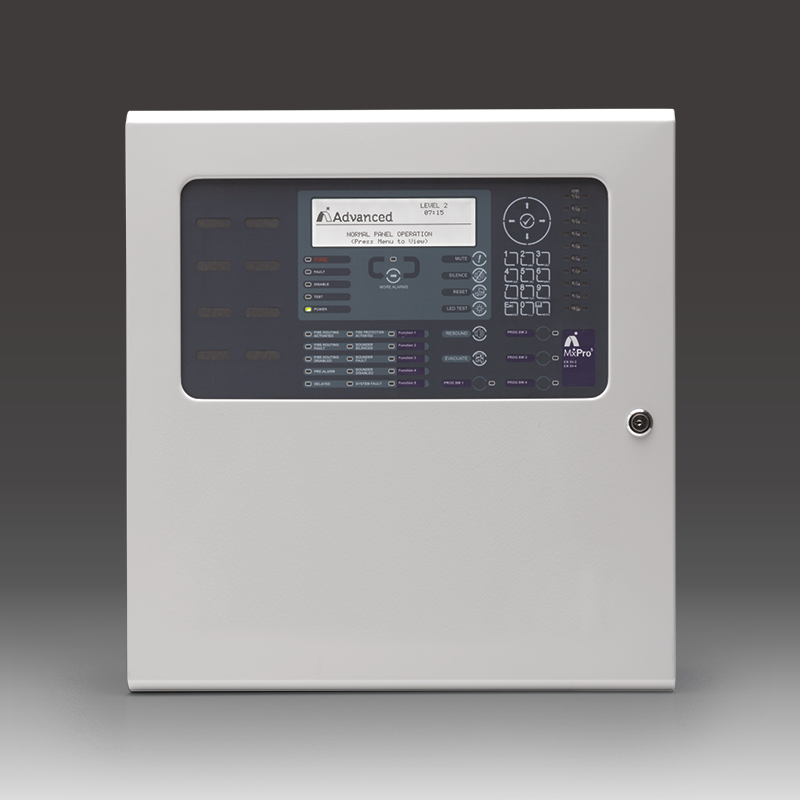

Advanced MxPro 5 – 2 Loop Panel

The MxPro 5 series control panels offer a fully expandable fire alarm solution, accommodating 1 to 2 loops. These panels are equipped with dual onboard sounder circuits, programmable zonal LEDs, and a high-resolution graphical LCD display. Designed for both engineer configuration and end-user operation, the MxPro 5 series utilizes advanced dual flash-based microprocessor technology to ensure efficient and reliable performance.

With compatibility for AdvancedLive (UK&I only), the MxPro 5 series enables secure, real-time management of fire systems. Its powerful programming capabilities and enhanced diagnostics make it suitable for a variety of applications, from small installations to large, complex multi-area systems. The user-friendly interface and extensive software suite further enhance the operational experience.

• 2 onboard sounder circuits and 20 programmable zonal LEDs
• 25 system LEDs for information purposes
• 4 programmable function buttons with LED indication
• Powerful cause-and-effect programming and enhanced trace diagnostics
• Fully programmable via onboard alphanumeric keypad or PC software
• Dedicated USB and RS232 serial ports for direct PC or modem connection
• Installer-friendly auto-learn and loop detection features
• Robust removable equipment chassis with plug-in connectors
• Integral P-Bus for system expansion via available option cards
• Advanced networking capabilities with peer-to-peer system
• Global compliance and 3-year warranty

• Base Technology : Dual Flash-Based Processors With Real-Time Clock, Trace Diagnostics, Programmable Languages And Character Sets
• Display : White Backlit 240 X 64 Graphical LCD
• LED Indicators : 22 Red (1 X Fire, 1 X More Alarms, 20 X Zonal Programmable), 1 Green (Power), 13 Amber And 12 Bi-Colour (Fault & System)
• Controls : Alpha Numeric Keypad Permitting Navigation, Reset, Mute, Silence, Resound, Evacuate, And 4 X Programmable Push Buttons
• Protocols : Apollo (Soteria / XP95 / Discovery), Argus Vega, Hochiki ESP
• Number Of Fire Zones : 2000 (200 Per Individual Panel)
• Number Of Loops : Dedicated 1-2 Loop Control Panel
• Loop Current : 500mA Per Loop
• On-Board Sounder Circuits : 2 X 1 Amp Programmable
• On-Board Relays : 2 X 1 Amp 30V AC/DC Programmable (10mA, 5V Min) – Expandable To 4 Using MXP-507
• Auxiliary Supply : 1 X 24V 500mA
• Programmable Input : 1 X Monitored Programmable Input On-Board
• Programmable Key Switch Inputs : 8 Volt Free Inputs
• Total Available Output Current : 5A Maximum Available For Loop Current + Sounder Outputs + Auxiliary Supply
• Mains Supply : 200 – 240V 50-60 Hz AC (+10%, -15% Tolerance) 1.4A Max
• Charger Current: 2A Temperature Compensated
• Ethernet : 10-Base-T, 100-Base-T Providing AdvancedLive Connectivity (UK&I Only)
• Serial Ports : 1 X On-Board RS232 Connection For PC, Modem, IP, Or Portable Printer
• USB Interface : 1 X USB B Type Connection For PC Communication
• Programming : On-Board Keypad Or PC Running Windows Tools
• Event Log : 5000 Event & Diagnostic + 500 Fire
• Networking : Optional Plug-In Network Card (MXP-503 – Standard, Or MXP-509 – Fault-Tolerant)
• Enclosure / Colour : Steel IP30 / RAL7035
• Dimensions : Standard 345 X 430 X 120 mm, Large 475 X 450 X 120 mm, Large-Deep 475 X 450 X 190 mm
